RT-CS/2/3


Description

Description

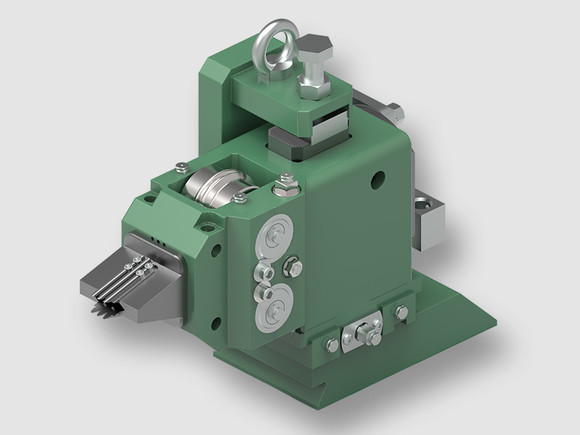

A roller slitter guide designed for the multi-strand slit rolling production of reinforcing bars and light sections. This guide may be used for two strand or three strand slitting. The guide is normally installed on the mill stand rest bar using a guide holder. Non-holder, sliding base, types are also available for some restricted situations.

Guide Features

Guide Features

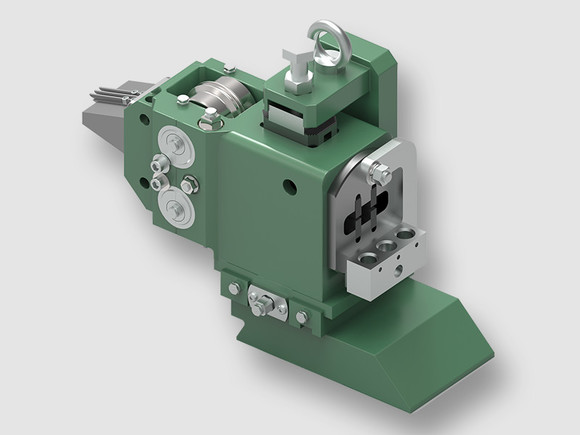

  • Cast stainless steel body.
  • Simple single point simultaneous guide roller gap adjustment.
  • High capacity taper roller bearings for trouble free bar mill operation.
  • Hardened steel and wear resistant components where required.
  • Available with quick-change holder mounting.
