EDG


Description

Description

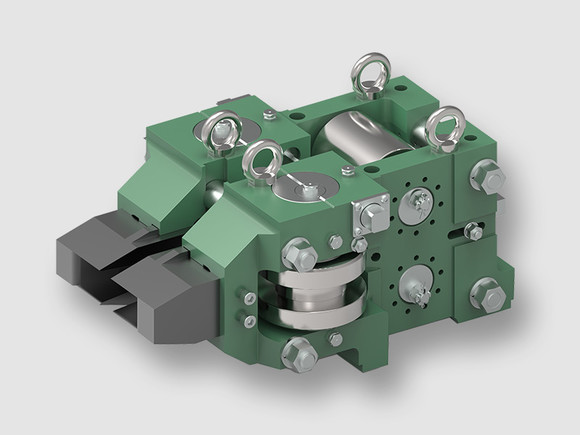

A versatile ‘working’ guide used for ‘edging’ flat and ‘near-flat’ sections. Can also be utilised for the edging control of the former section width when slit rolling multi-strand re-bar products. The guide is mounted on the delivery side of the rolling mill stand. There is no external power requirement as traction is supplied by the rolling mill drive and the bar passing through the edging rolls.

Guide Features

Guide Features

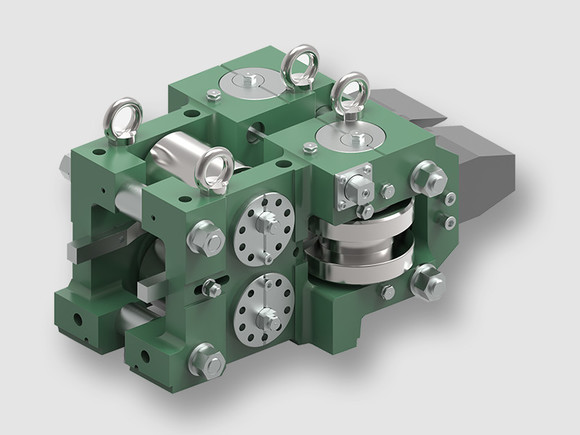

  • Single point simultaneous roll gap adjustment.
  • Fully enclosed and sealed gearing.
  • Special tool steel work rolls for long operational life.
  • Hardened steel bearing pins and gearing.
  • Rugged, cast steel, or ductile iron roller holders.
  • Available in sizes to control 20 x 3 through 300 x 60 flat and near-flat bars.
