ES - Entry Static

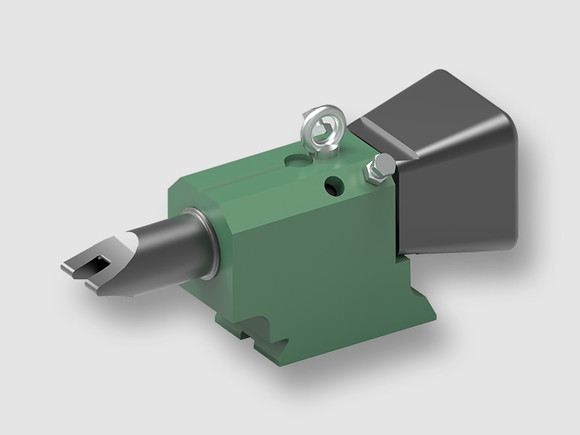

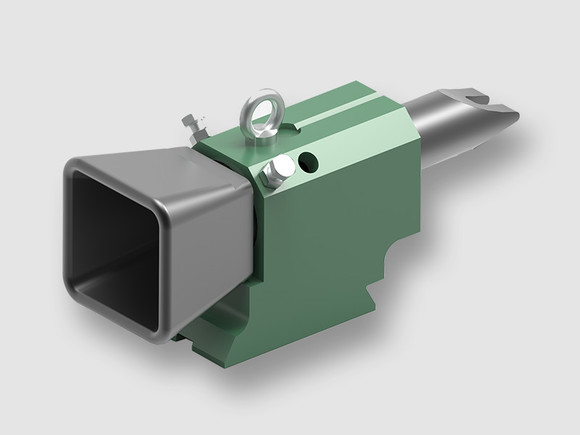

Simple entry guides designed for the entry of round, square and flat bars into the receiving oval and flat passes. The guides are of a cassette design and are contained in a guide holder with a circular bore. They are available in single and multiple, 2, 3, 4 and 5, strand versions.

• The guides consist of two separate cast halves, which are profiled to accept the appropriate section.
• A variety of materials may be supplied for the guide halves. Ductile SG iron, stainless steel and cast carbon steel. The choice of guide insert materials depends on the service expected.
• Replaceable wear pieces are available for some designs.
• The guide box or guide holder may be a casting, for multiple versions or machined from a solid block.
• Guide box materials may be stainless steel or cast carbon steel.
• Cooling water is fed into the guide halves through the guide box.
• Special guide boxes, with fine pass adjustment, are available for use in a high-speed wire rod block.
