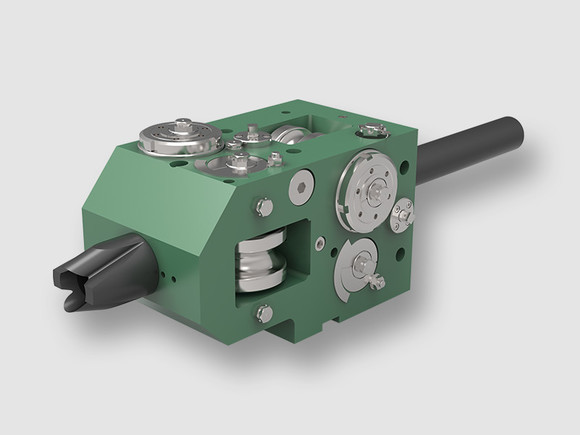

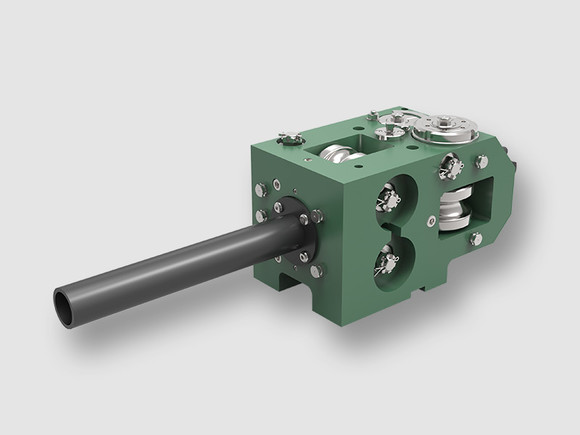

SG - Sizing Guide

Available in a 2 Roller, horizontal design and a 4 Roller, horizontal - vertical design. The guide rectifies “out of round” and “ovality” problems of round bars along with twisting and “crossed - rolls” errors of square sections.

Available in sizes to process 10mm through 100mm bars. May produce bars to 0.25 of standard.

• Cast stainless or carbon steel body. Dependent on the guide size and client requirement.
• Cast iron stripper nozzles to suit product size.
• Single-point simultaneous and individual adjustment to the working rolls to provide ease of gap setting.
• Nitride hardened and ground roller bearing shafts.
• Large taper roller bearings protected from the ingress of mill scale and water.
• Positive bearing setting adjustment for longer bearing life.
• Working roll material varies according to client requirement. Standard roll material D6 tool steel.
